The IP54 Magnetic LED Downlight Kit (Set of 4) is a complete, precision-matched downlight system designed for smooth mains dimming, high colour accuracy, and straightforward long-term maintenance in areas requiring ingress protection.

Each downlight kit combines a high-performance LED light engine, a trailing-edge dimmable driver, and an adjustable IP54-rated magnetic downlight fitting. The inner module is magnetically retained, allowing quick, tool-free access for servicing or replacement once installation is complete.

The system delivers stable, flicker-free illumination with a colour rendering index of CRI 98, suitable for premium residential and architectural interiors, including bathrooms and covered areas where IP54 protection is required.

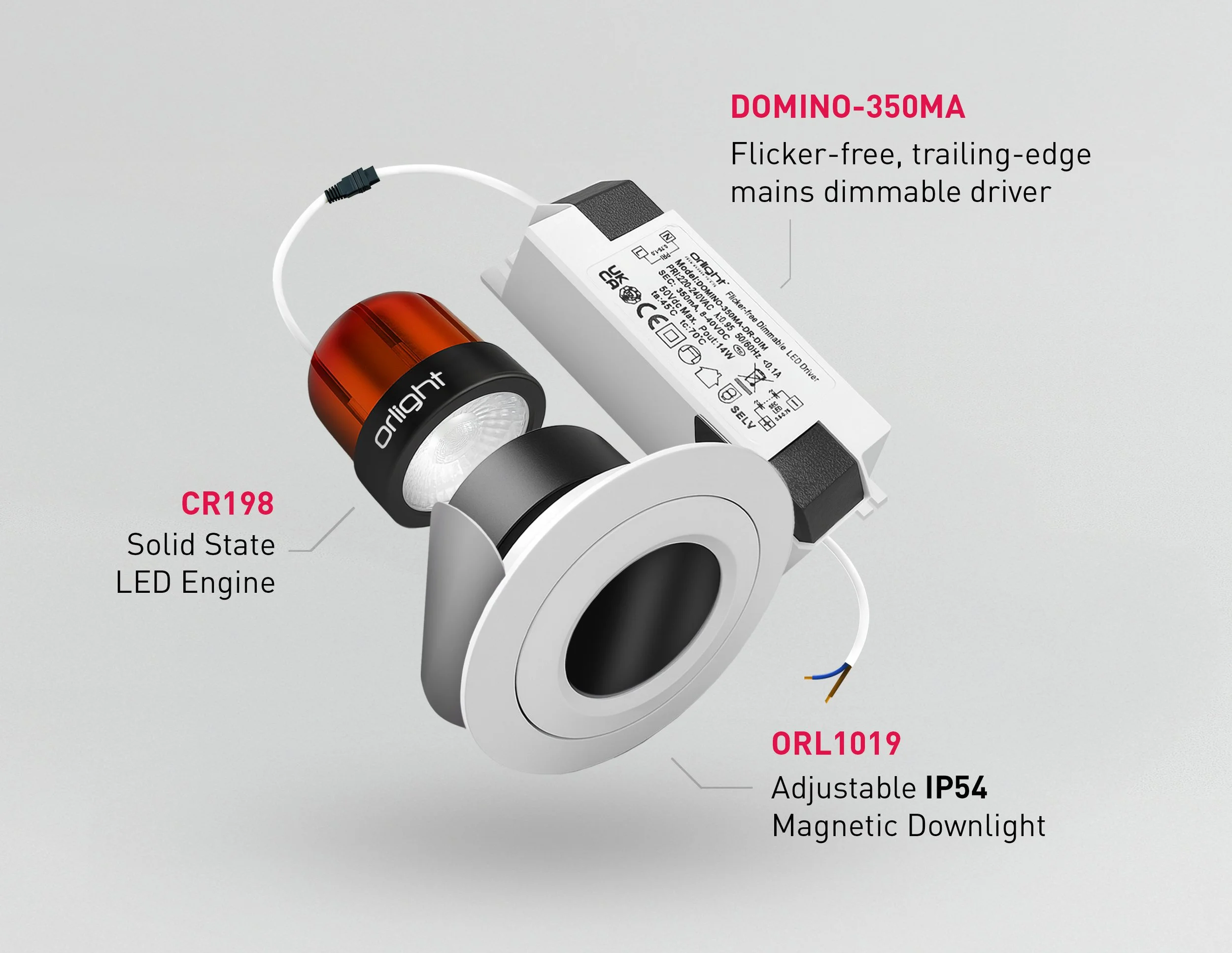

What’s Included – 4 Complete IP54 Downlights

You will receive four identical, fully matched IP54 downlight kits, each consisting of the following components:

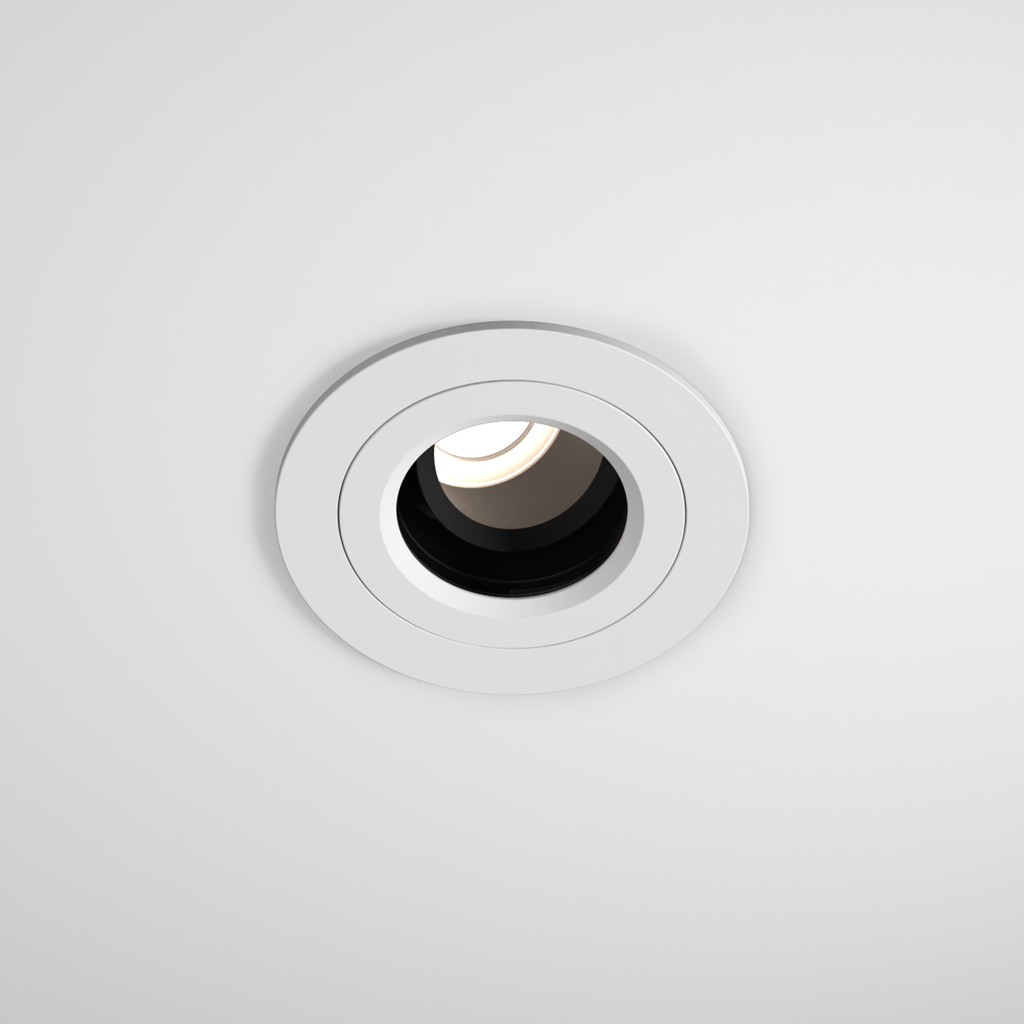

ORL1019-WH-9016-IP54 – Adjustable IP54 Magnetic Downlight Fitting

White finish (RAL 9016)

Allows adjustment without disturbing the ceiling

Magnetically retained inner module for maintenance access

DB8-2700K-CRI98-18V-350mA – LED Light Engine

2700K warm white output

CRI 98 colour rendering

Constant current operation

DOMINO-350mA-DR-DIM – Dimmable LED Driver

Trailing-edge dimmable

Flicker-free performance

Stable dimming at low light levels

Important Notes

Quantity: 4 complete IP54 downlights

Each downlight includes fitting, LED module, and driver

Components are supplied separately and intended to be installed together as a matched system

Images shown are for visual reference only

Technical Summary

Ingress protection rating: IP54

Light colour temperature: 2700K

Colour rendering index: CRI 98

Dimming type: Trailing-edge, mains dimmable

Finish: White (RAL 9016)

Application: Residential and architectural interiors, including IP-rated areas
